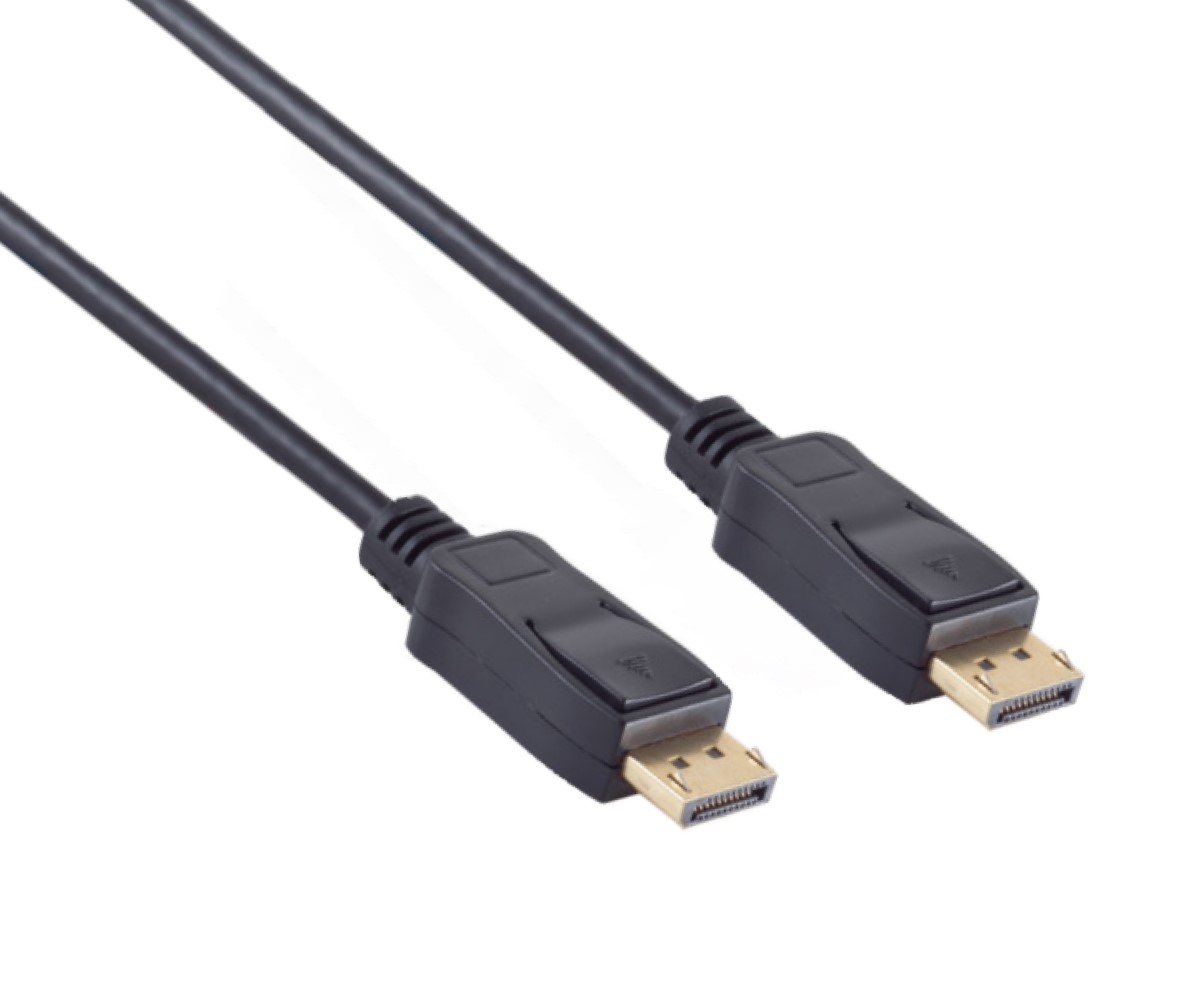

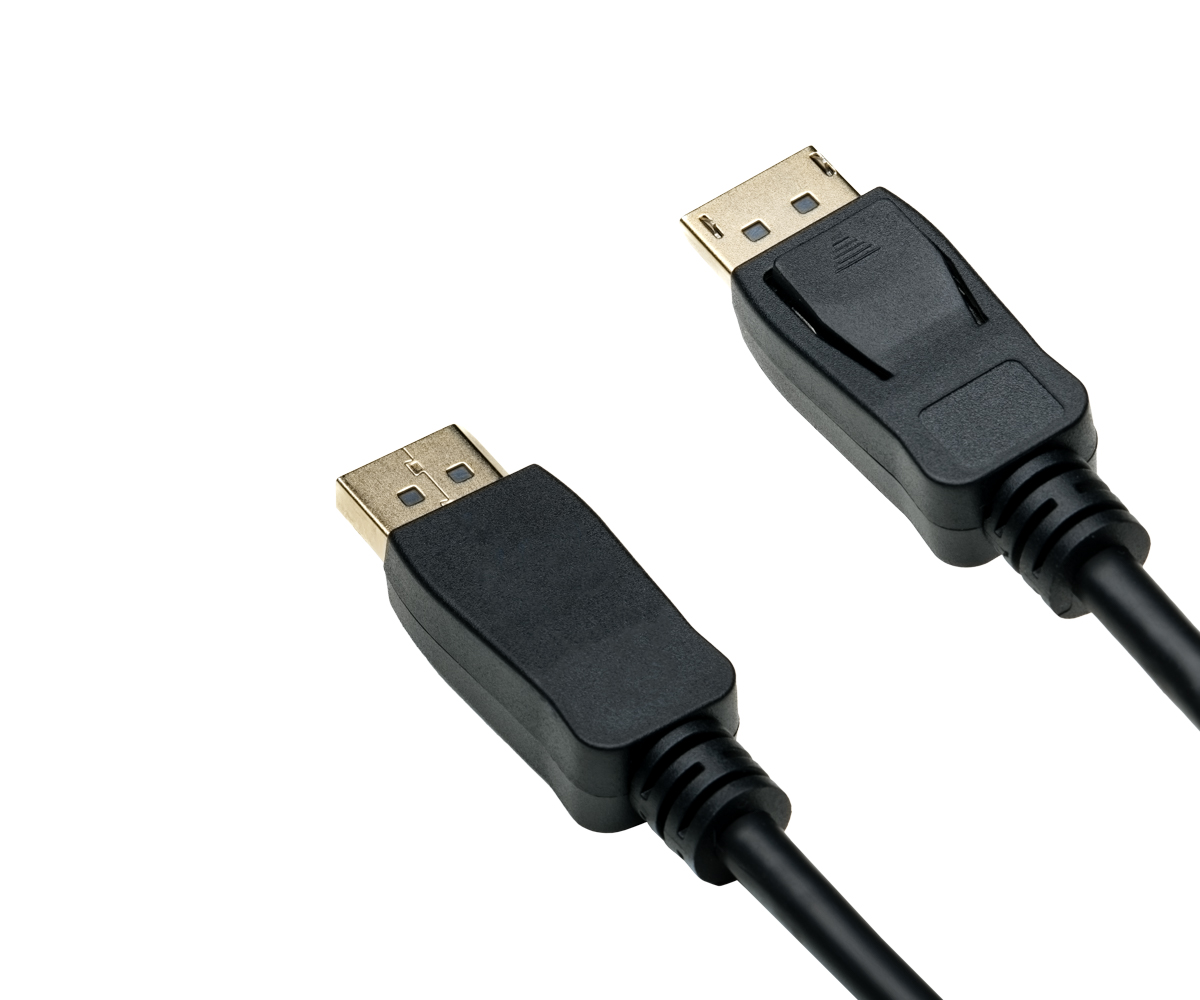

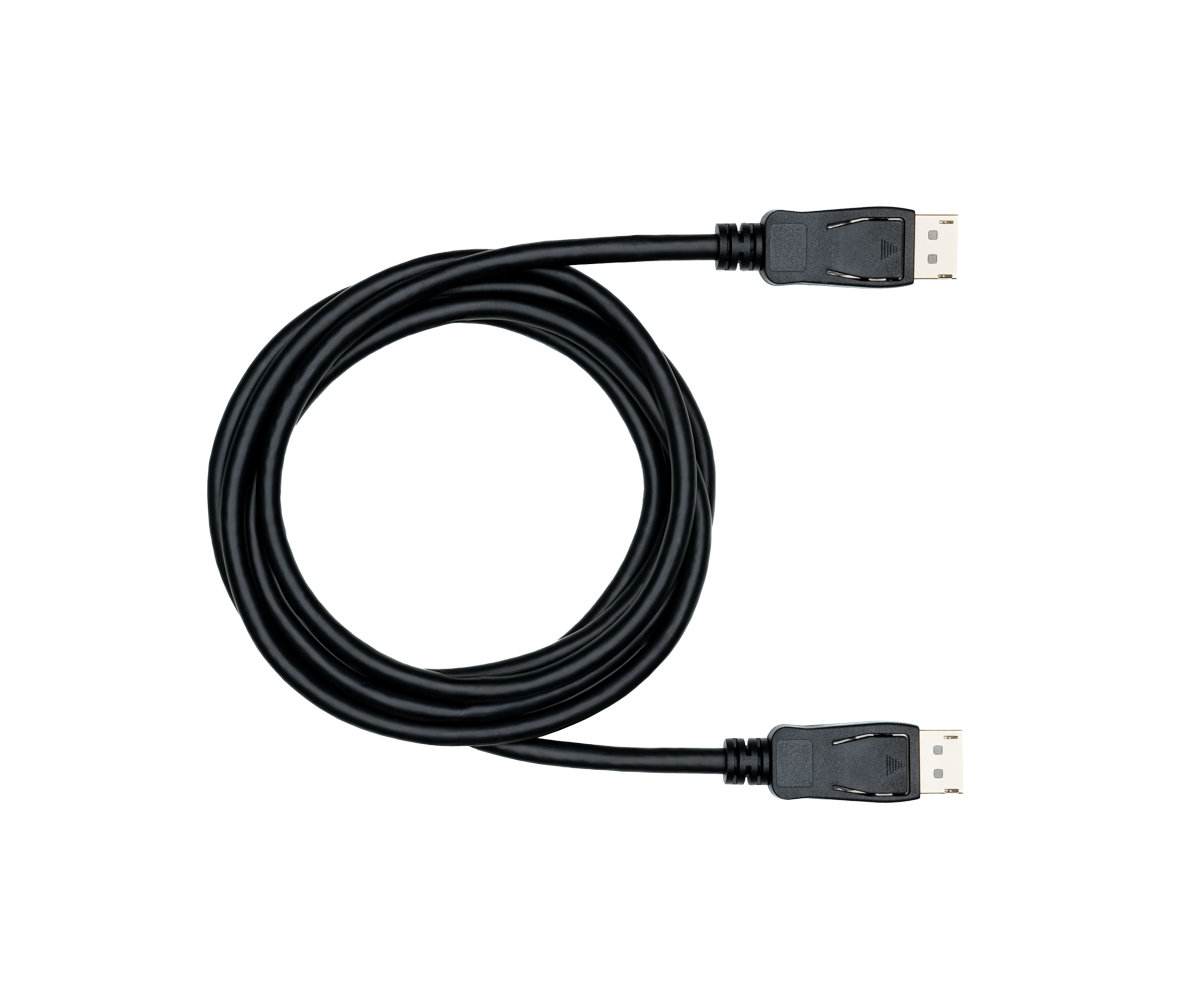

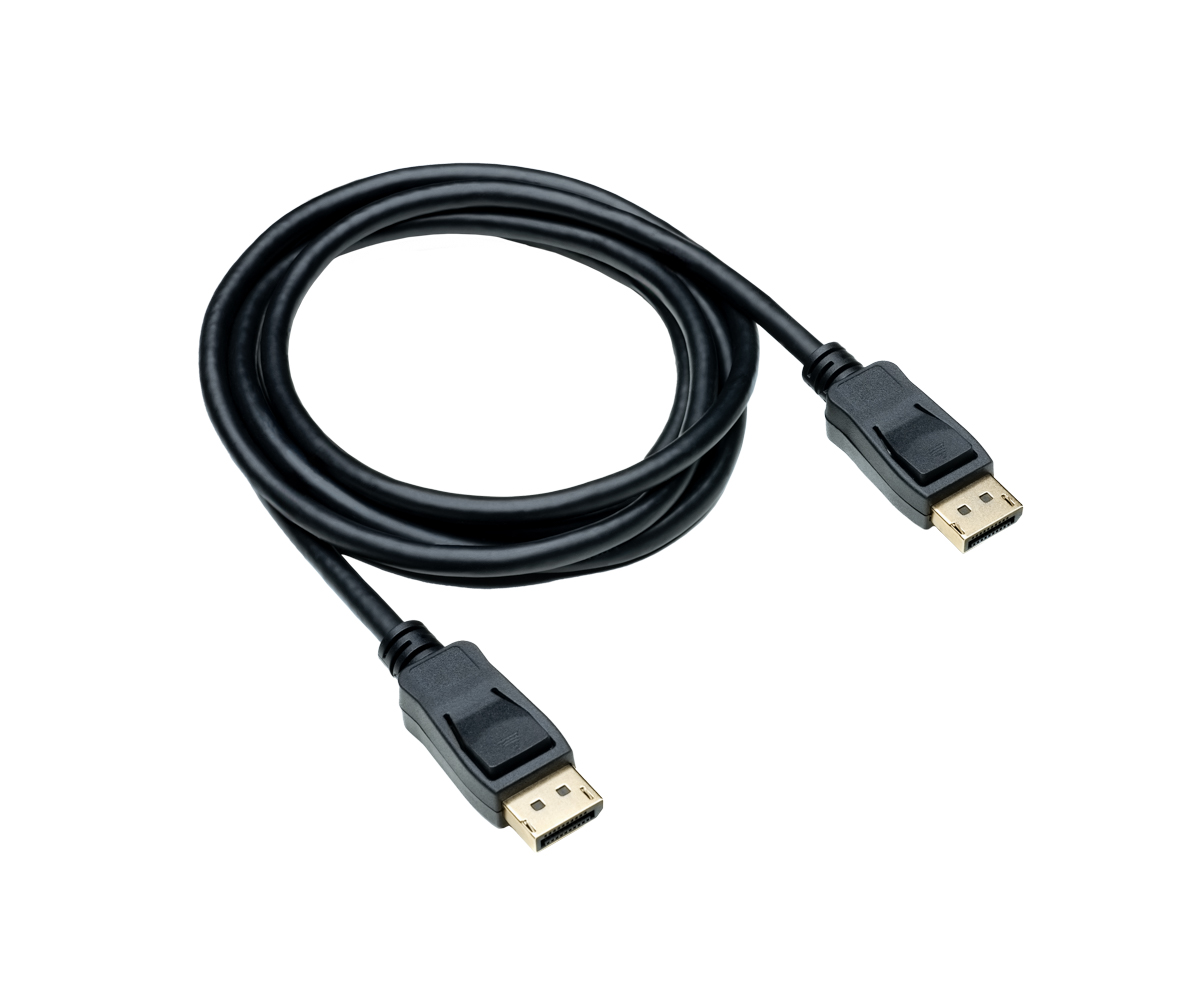

DINIC DisplayPort 1.4 connection cable, 8K, 8K (60Hz), 5K (120Hz), 4K2K (240Hz), black, DINIC Polybag, 5m

DisplayPort 1.4 connection cable, 8K, 5m

With the DisplayPort 1.4 cable you can connect, for example, your graphics card
to a monitor, television or video projector.

This cable supports a maximum bandwidth of 32.4 Gbit/s, which corresponds to a resolution of
resolution of 7680 x 4320 at 60 Hz, 5120 x 2880 at 120 Hz or 3840 x 2160 at 240 Hz and a colour sampling of 4:2:0.
and a colour sampling of 4:2:0.

Product details:

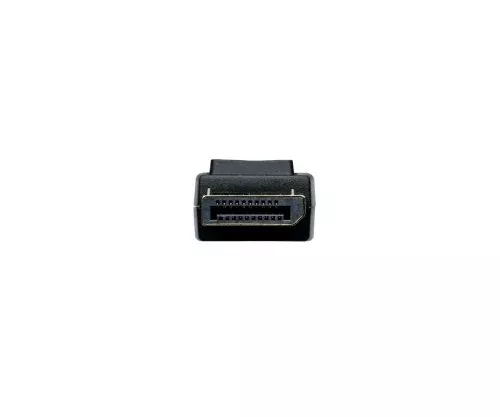

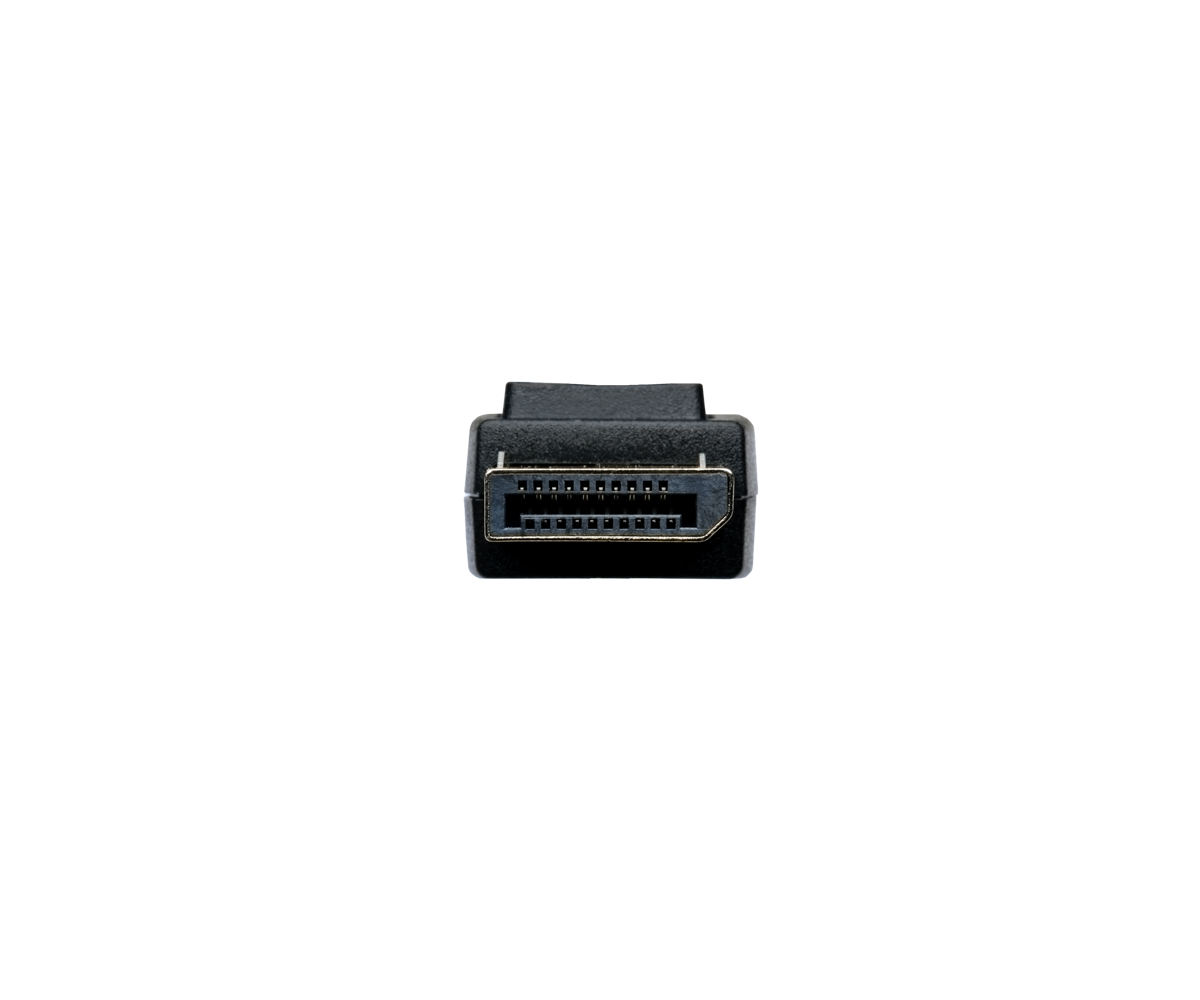

• Connectors: DisplayPort plug to DisplayPort plug
• Resolution up to: 8K (60Hz), 5K (120Hz), 4K2K (240Hz)
• Supports colour sampling in the formats 4:4:4, 4:2:2 and 4:2:0
• Supports: HDR10, HDCP 2.2, HDCP 2.3, HDCP 1.4, 3D, Adaptive-Sync, DSC, HBR3
• Bandwidth up to: 32.4 Gbit/s
• DisplayPort version: 1.4
• Downward compatible versions: 1.3, 1.2 and 1.1
• Number of shields: 3-fold
• Shielding 1: ALU foil laminated PIMF (100% tight)
• Shielding 2: ALU foil (100% tight)
• Shielding 3: ALU braid (100% tight)
• Cable construction: AWG 30
• Core material: Copper
• Plug: moulded
• DP plug with locking catch
• Plug material: CuZnNi, gold-plated
• Contact surface: gold-plated pins
• Connector housing: ABS
• Bend protection: Yes
• Cable type: Round cable
• Cable sheath: PVC
• Cable diameter (approx.): 7.1mm
• Colour: black
• Length: 5.0m
• Packaging: DINIC polybag

Manufacturer:
MAG GmbH
Vechelder Str. 22
38268 Lengede
Email: dinic@mag.de
