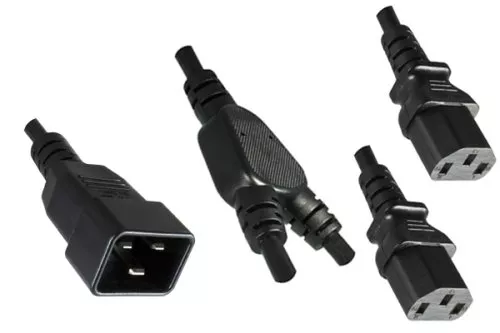

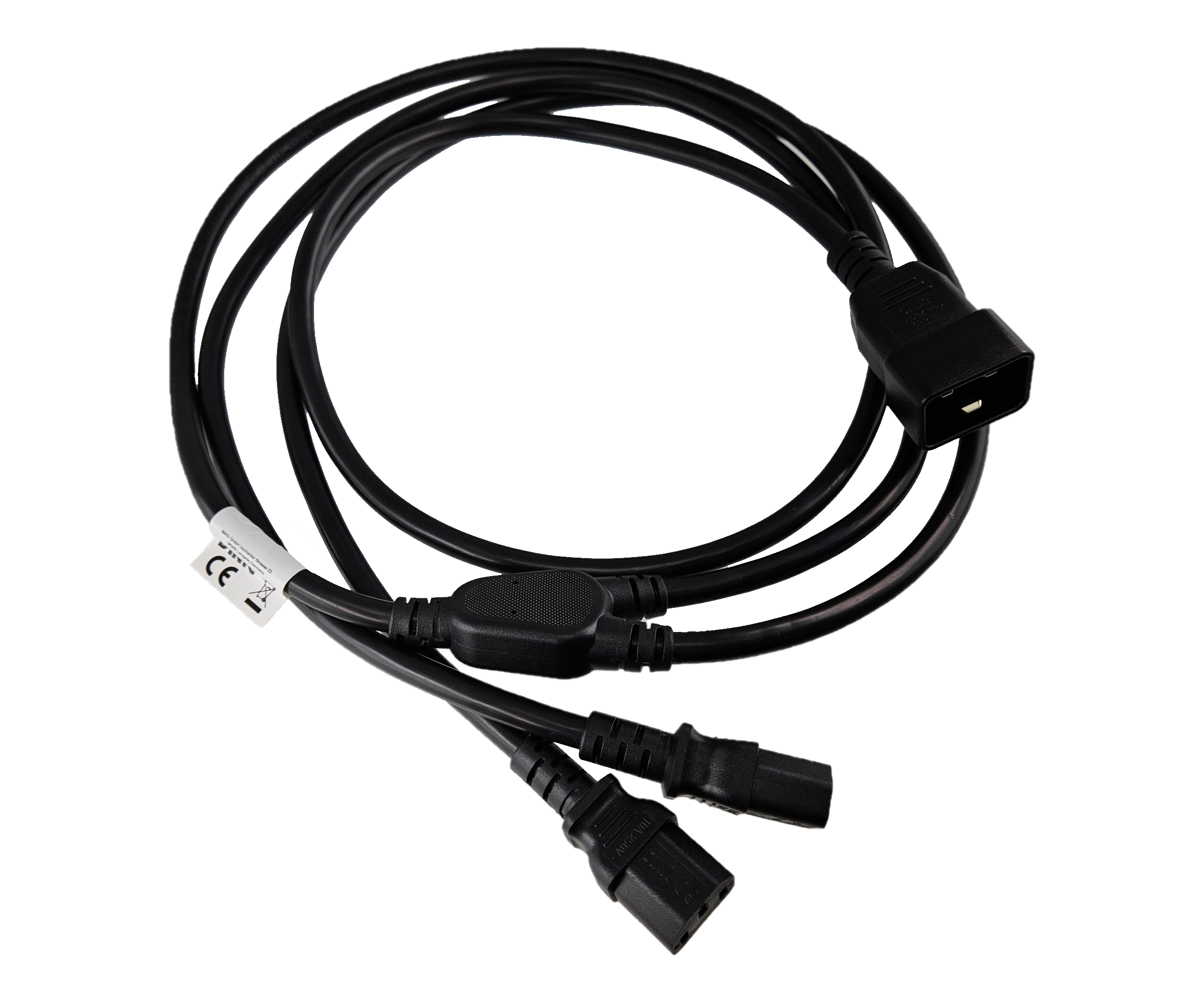

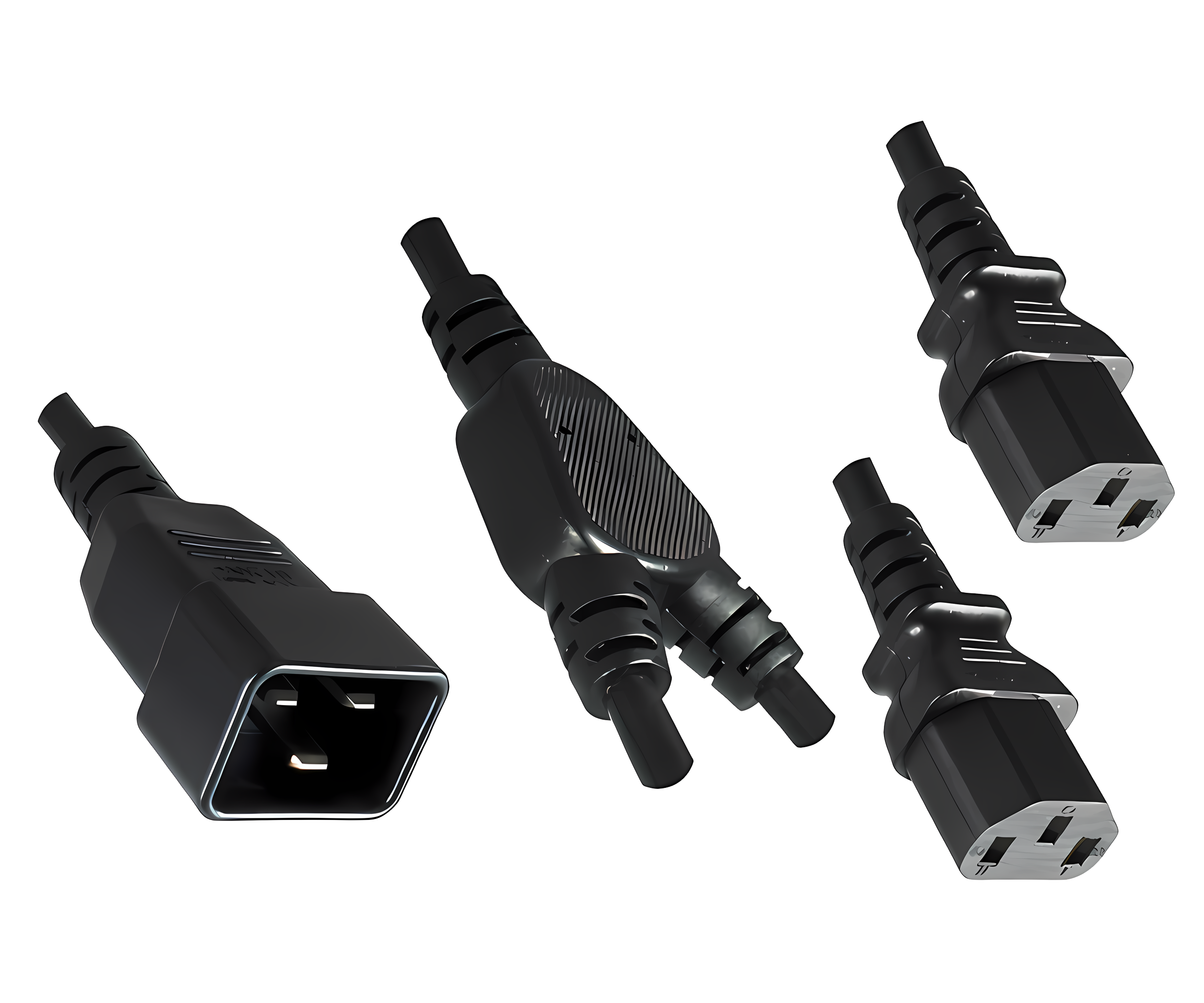

Y-cold device extension - 2x C13 to C20, 1.5mm², 2.00m
MAG item no.: CB-2013-Y-2M (YP-33/2x YC-12)
- Connector: 2 x C13 to 1x C20
- Color: black
- Length: 2m ( 1.20m + 2 x 0.80m )
- Cross section: 3 x 1.5mm²
- Material: H05VV-F
- Approval: ENEC, VDE, NF, DEMKO, FINKO, KEMA, CEBEC, OVE, IMQ, SEV, SAA
- RoHS compliant
- Packing: Bulk

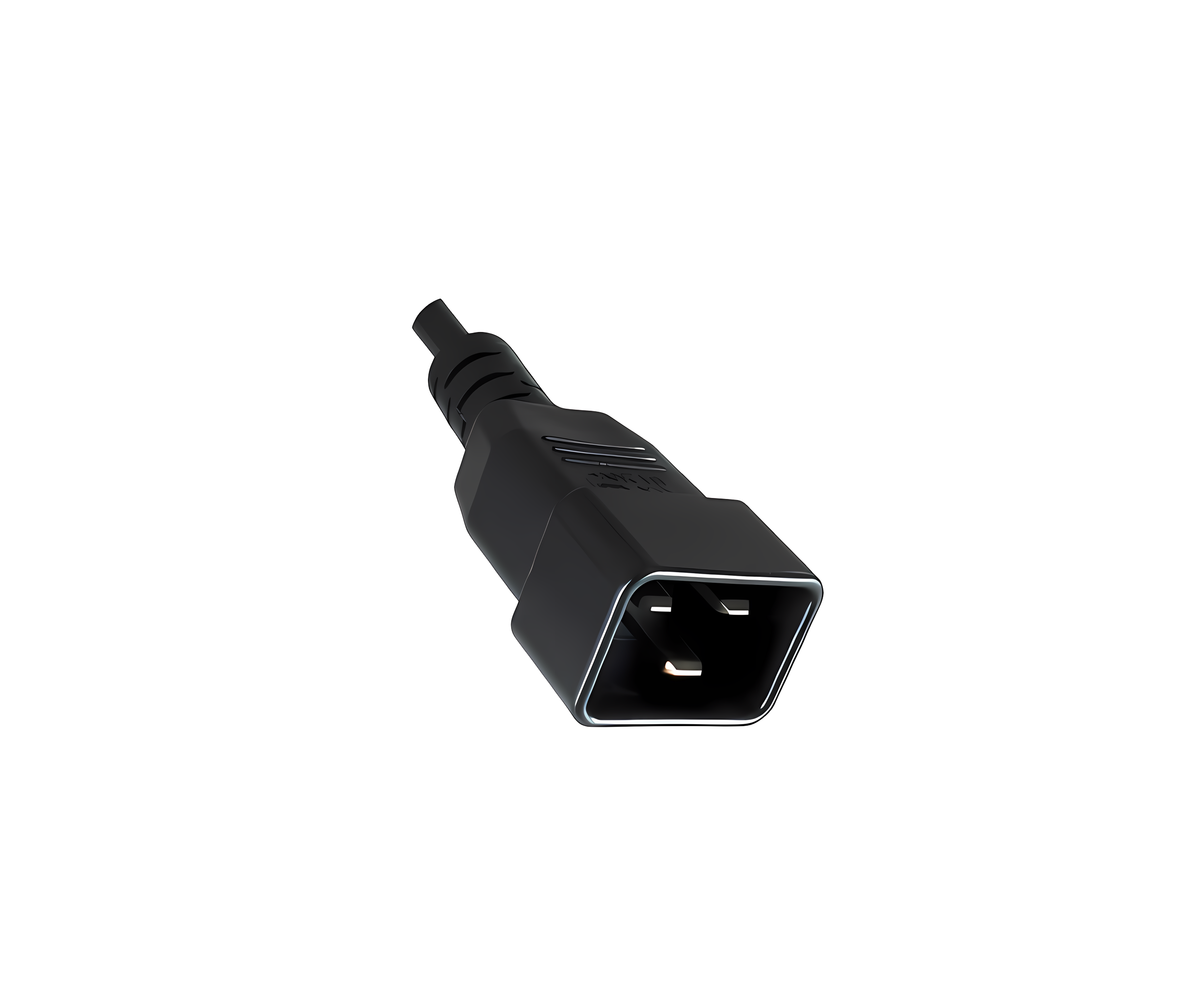

Plug C20 (YP-33)
IEC 60320-C20 connector is used for applications with higher load up to 16A and max. temperature up to 70°C.

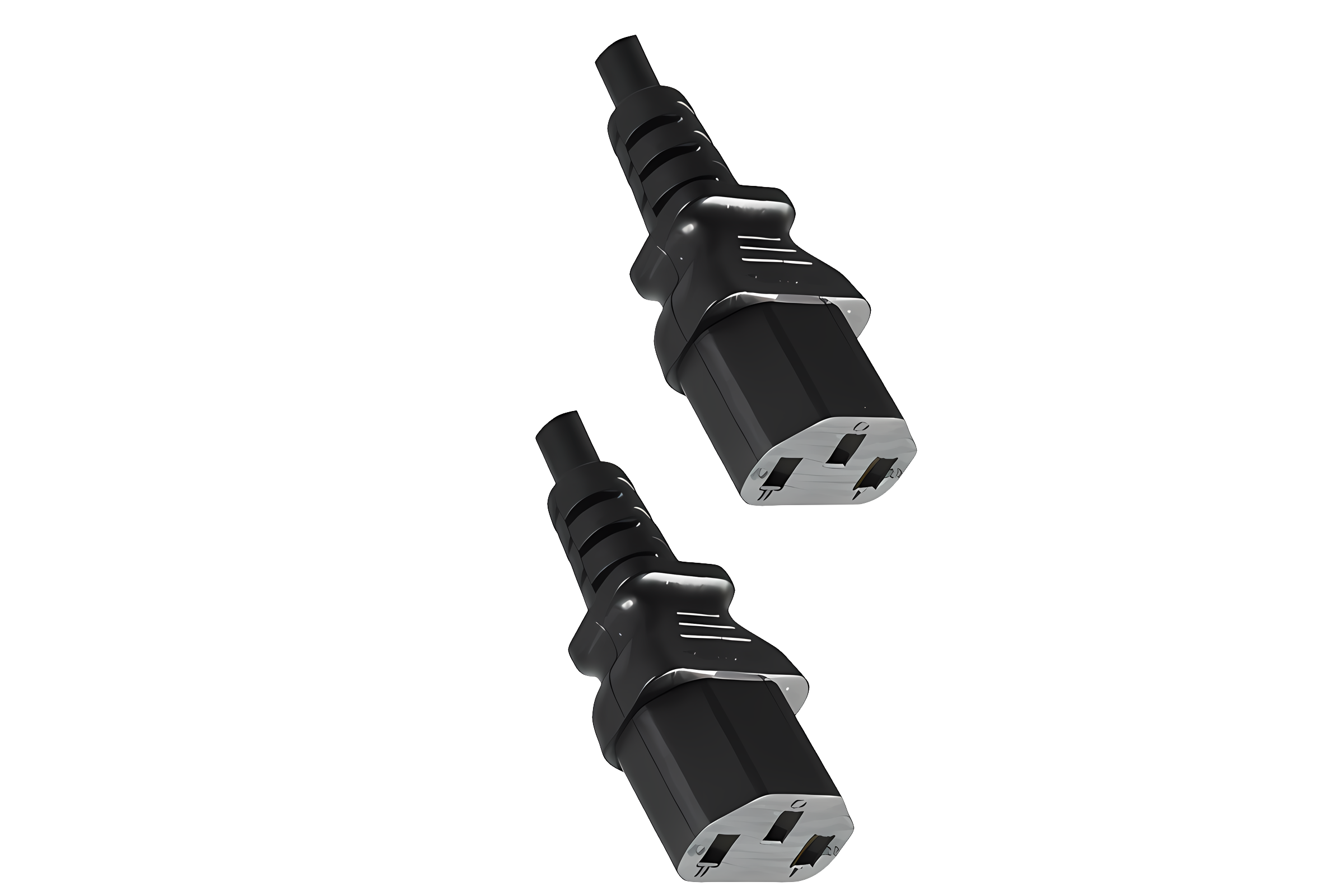

Plug C13 ( YC-12 )
IEC 60320-C13 cold appliance plug is used for power connection of devices which do not generate heat during operation. The maximum temperature of the plug must not exceed 70°C and the maximum current flow is fixed at 10A. Cold appliance plugs do not fit into warm or hot appliance sockets.
Keywords: 1.80m 1.8m 2.00m 1.8 ca.2 ca.1.8
Manufacturer:
MAG GmbH
Vechelder Str. 22
38268 Lengede
Email: dinic@mag.de
Safety Information:
Use only under direct adult supervision
