Universal power supply, 3V-12V, 2,25A,max. 27 Watt incl. 11 different adapters, black, DINIC box with Euro hole. adapters, black, DINIC box with Euro hole

Universal power supply unit (3 V - 12 V, max. 27 W / 2.25 A)

This versatile universal power supply (3 V - 12 V, max. output 27 W / 2.25 A) with a range of connections makes it the ideal power source for your small electronic devices.

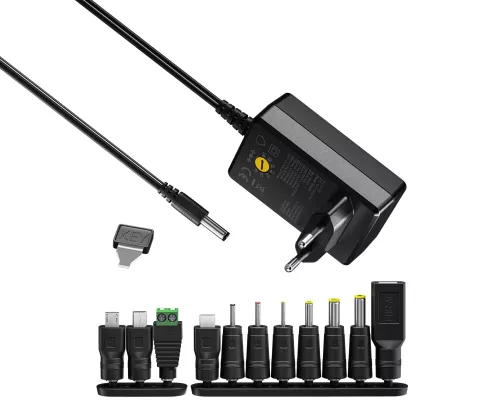

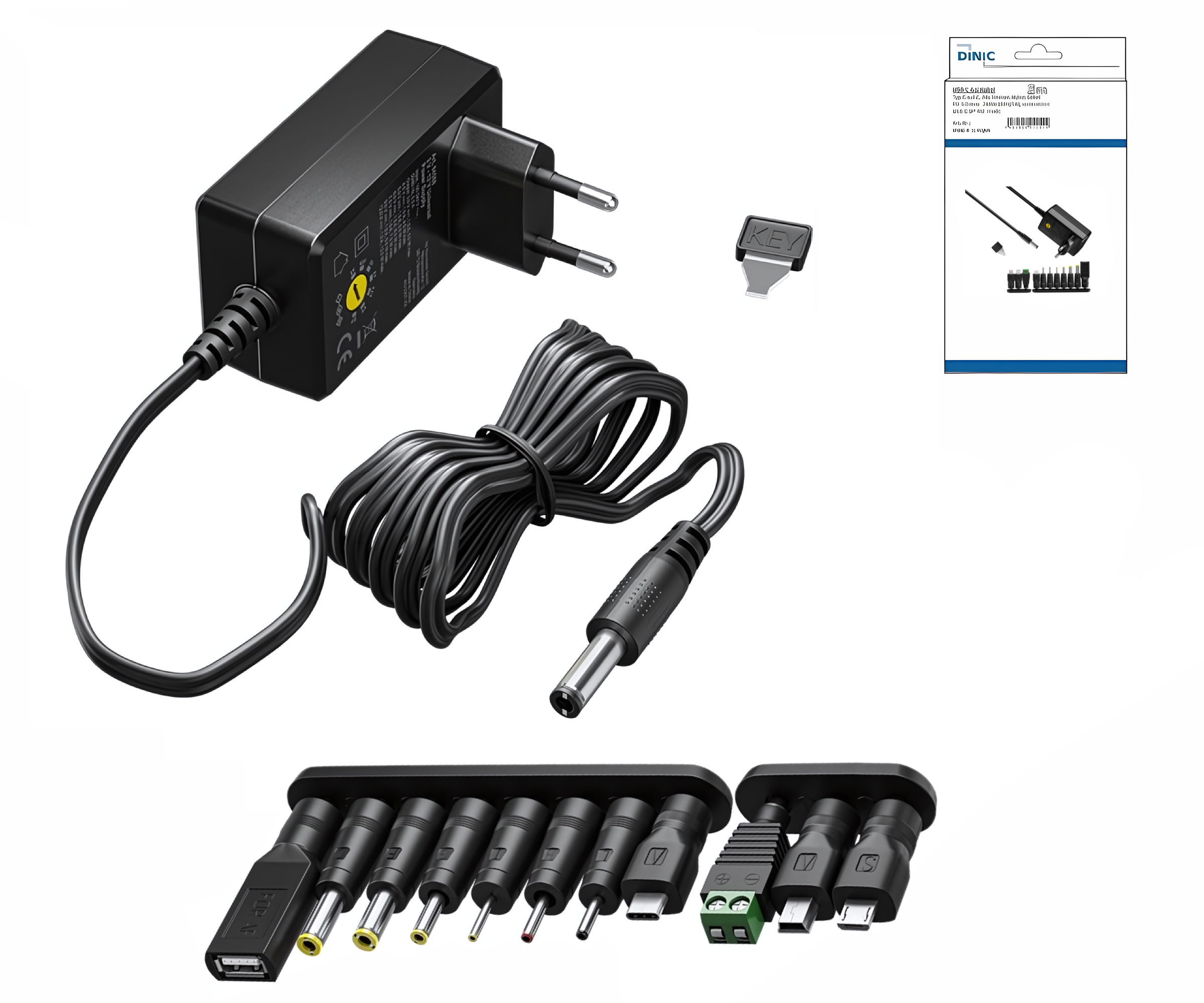

It comes with a total of 11 adapters, including 7 DC adapters as well as USB-C, USB-A, USB Mini-B, Micro-USB and a screw terminal connection.

With its variable voltage, the universal power supply is perfect as a replacement power supply for a wide range of electrical devices, from TV boxes and routers, LED strips and video cameras to digital photo frames, dart boards, baby monitors and toys.
The output voltage can be set to 3 V, 4.5 V, 5 V, 6 V, 7.5 V, 9 V or 12 V at 2.25 A using the supplied spanner.

The power supply unit is equipped with a universal USB-C adapter that can operate a wide range of new devices and makes the power supply unit suitable for long-term use thanks to its status as a new hardware standard.
Micro-USB and mini-USB ports power many small electronic devices such as portable radios, battery chargers, Bluetooth speakers or headphones.

In addition to the permanently installed DC plug (5.5 x 2.1 mm), 6 further DC adapters are included: 5.5 x 2.5 mm, 2.5 x 0.7 mm, 3.0 x 1.1 mm, 3.5 x 1.35 mm, 4.0 x 1.7 mm, 4.8 x 1.7 mm.
Thanks to the interchangeable DC adapters, the 12 V power supply unit with Euro plug (CEE 7/16) eliminates the need to purchase additional chargers.

Fuses in the plug-in power supply unit protect against short circuits, overloads, overvoltage and overcurrent.

DC connections:

• 5.5 x 2.1 mm (cable)
• 2.5 x 0.7 mm
• 3.0 x 1.1 mm
• 3.5 x 1.35 mm
• 4.0 x 1.7 mm
• 4.8 x 1.7 mm
• 5.5 x 2.5 mm
• Mini-USB
• Micro-USB
• USB-C
• USB-A
• Screw terminal connection

Technical data:

• ErP average operating efficiency: 81 %
• Efficiency at low load (10%): 71.8
• Power consumption at no load: 0.08 W
• Maximum power: 27 W
• Input, voltage range: 100 - 240 (AC) V
• Input, type: Euro plug (type C, CEE 7/16)
• Output, max. current (DC): 2.25 A
• Input current (AC): 1.0 A
• Cable length: 1.8 m
• Colour: Black
• Labelling: CE, WEEE, house, cuboid
• Dimensions / Weight: Length: 76.45 mm, Width: 44 mm, Height: 69.2 mm, Weight: 105 g
• Consumption unit: 1 pc. in DINIC box

Output power:

• 3.0 V max. 2.25 A (6.75 W) DC
• 4.5 V max. 2.25 A (10.13 W) DC
• 5.0 V max. 2.25 A (11.25 W) DC
• 6.0 V max. 2.25 A (13.5 W) DC
• 7.5 V max. 2.25 A (16.88 W) DC
• 9.0 V max. 2.25 A (20.25 W) DC
• 12.0 V max. 2.25 A (27.0 W) DC

Manufacturer:
MAG GmbH
Vechelder Str. 22
38268 Lengede
Email: dinic@mag.de
