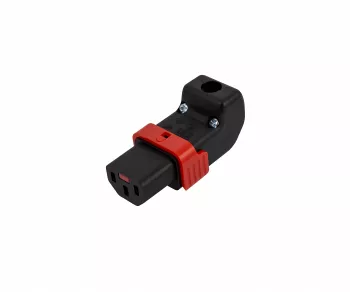

IEC Lock™ IEC60320-C13 Mountable Connector - Versatility and Safety Combined!

Step into the realm of secure and flexible power supply with our IEC Lock™ IEC60320-C13 mountable connector. This innovative product is designed to protect your devices from vibrations and accidental disconnections.

Versatile Application

The IEC Lock™ IEC60320-C13 mountable connector is rewirable and fits into any standard C14 inlet. The housing can be reversed to achieve a bottom or top-angled plug. With this product, you can be assured that your devices will always be securely and reliably powered.

Key Features

• Rewirable
• Housing can be reversed for bottom or top-angled plug
• Fits into any standard C14 inlet
• Anti-vibration feature
• Integrated plug holder
• Easy to pull handle
• Housing screws with slot and cross-slot
• Device inlet suitable for cold conditions
• Typ IEC LOCK PA130100DBK

Standards:

BS EN 60320-1: 2015 (KEMA-KEUR File: 35-102059)
BS EN 60320-3: 2014
UL 60320-1 (UL File E475619)
UL 60320-3
CSA C22.2 60320-1-11 (UL File E475619)
CSA C22.2 60320-3 (UL File E475619)

•     Materials Outer housing: Nylon (PA66) LSZH (RAL 9004 signal black)
•     Locking lever: Polycarbonate
•     Connection capacity 3 cores 2.5 mm² maximum, ø2.5 mm connection diameter
•     Maximum cable diameter 11.3 mm
•     Protection class Suitable for devices of protection class I according to IEC EN 61140
•     Rated power 10A Max / 250V~ (Europe & Australia) / 15A Max / 250V~ (USA) / 15A Max 125 / 250V~ (Japan)
•     Approvals: SAA, c CSA us, UL, ENEC, UKCA, PSE

Manufacturer:
MAG GmbH
Vechelder Str. 22
38268 Lengede
Email: dinic@mag.de

Safety Information:
Use only under direct adult supervision
