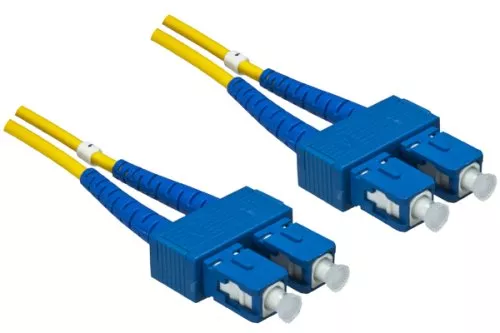

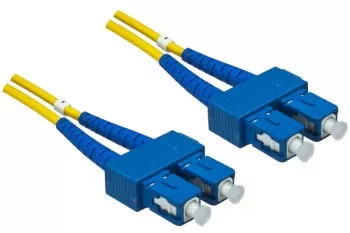

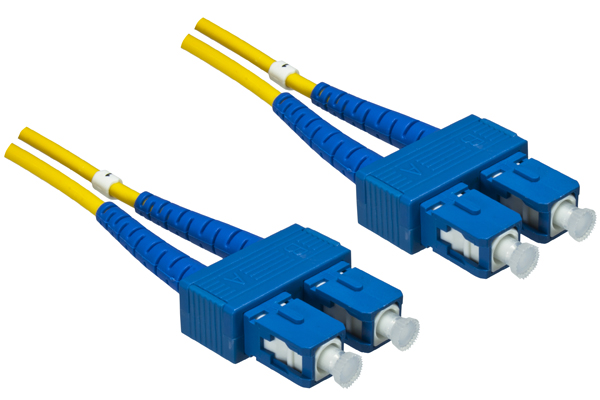

FO cable OS1, 9µ, SC / SC connector, single mode, duplex, yellow, LSZH, 1m

OS1 Fibre Optic fiber optic cable - SC/SC, yellow, 1m

Performance characteristics:

• Fiber: 9/125µ
• Connector: SC to SC
• Singlemode - OS1
• Duplex (two wires)
• OD: 1.8mm (outer diameter)
• Operating temperature: -20° to +70
• Color: yellow
• length: 1m

Features:

• RoHS compliant
• Halogen free according to IEC 60754-2
• Flame retardant according to IEC 60332-1
• Low smoke according to IEC 61034
• Packaging: DINIC Polybag with Euro hole
• Width: 200mm / Height: 300mm

Max. Range:

• 1 Gigabit/s - up to 40km
• 10 Gigabit/s - up to 40km
• 40 Gigabit/s - up to 10km
• 100 Gigabit/s - up to 10km

OS1 9µ (9/125) is used exclusively in singlemode operation and is mostly installed in the telecommunications sector.
