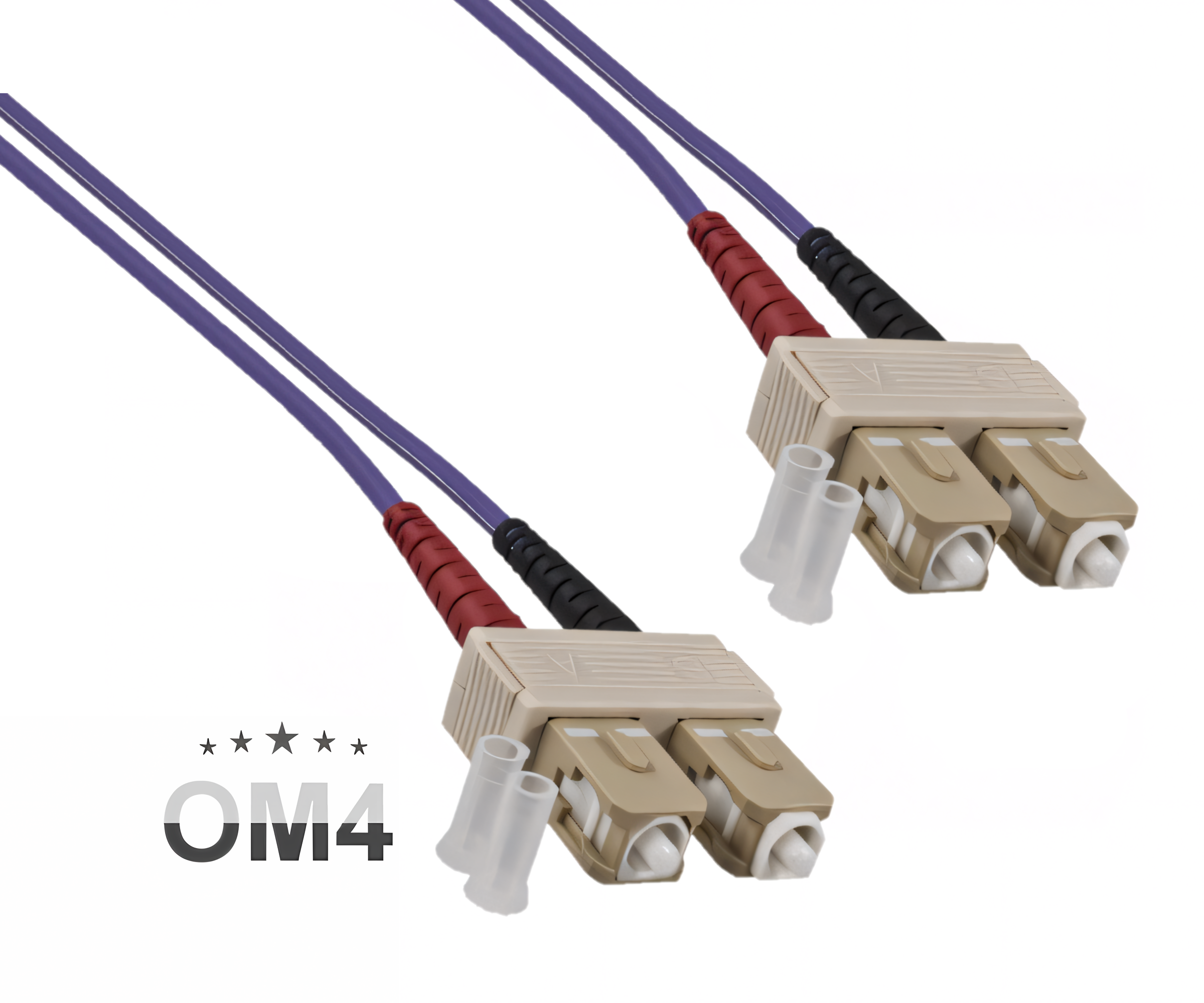

FO cable OM4, 50µ, SC / SC connector multimode, ericaviolet, duplex, LSZH, 20m

OM4 Fibre Optic fiber optic cable - SC/SC, 20m

Performance characteristics:

• Fiber: 50/125µ

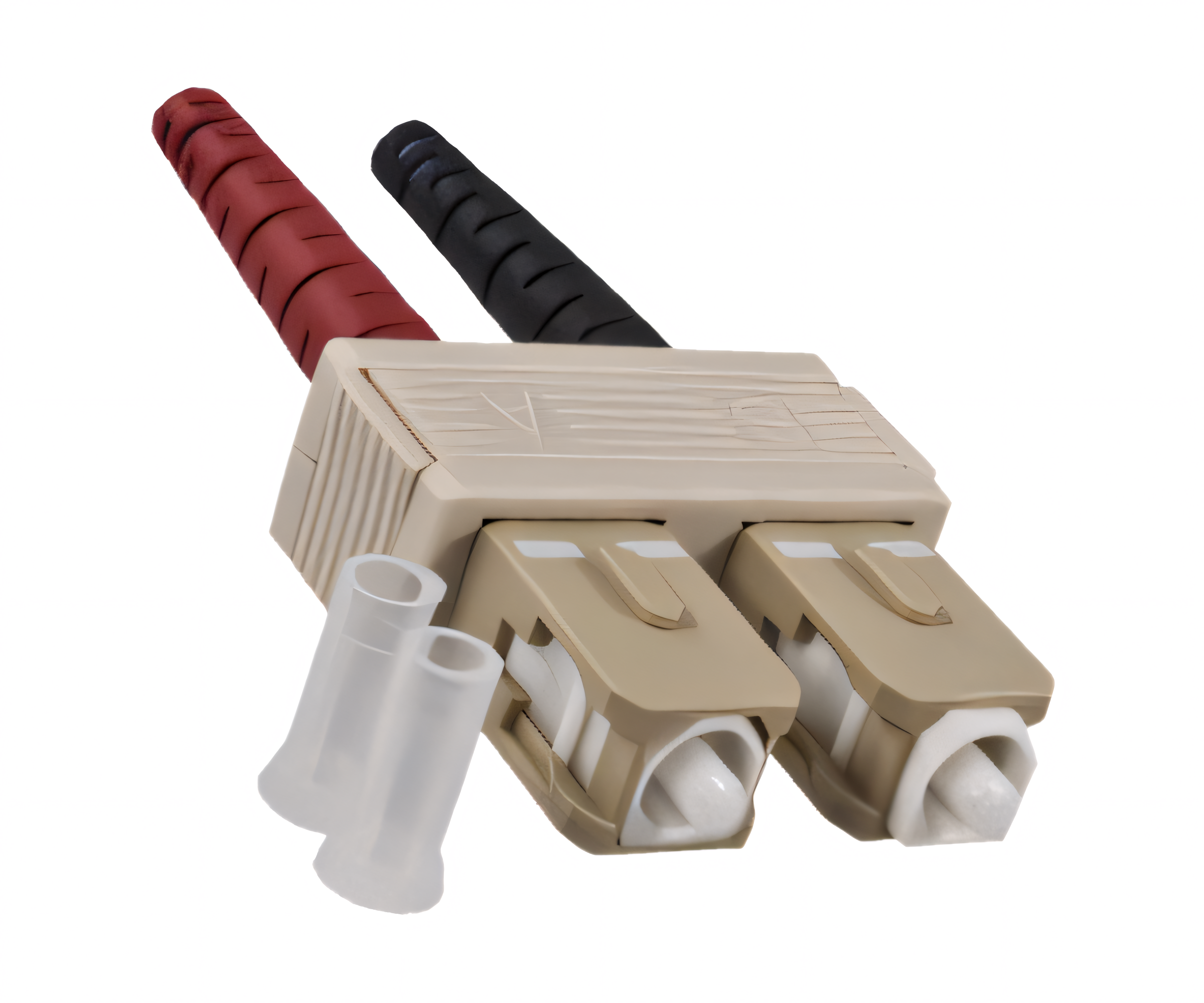

• Connector: SC to SC
• Multimode - OM4
• Duplex (two wires)
• OD: 1.8mm (outer diameter)
• Operating temperature: -20° to +70
• Color: ericaviolet (RAL 4003)
• length: 20m

Features:

• RoHS compliant
• Halogen free according to IEC 60754-2
• Flame retardant according to IEC 60332-1
• Low smoke according to IEC 61034
• Packaging: Bulk
• Width: 200mm / Height: 300mm

Max. Range:

• 1 Gigabit/s - up to 1100m
• 10 Gigabit/s - up to 550m
• 40 Gigabit/s - up to 150m
• 100 Gigabit/s - up to 150m

With OM4 optical fibers, more data can be transmitted and the range of the transmission channel increases.

( Optical fiber / fiber optic / fiber optic cable / SCSC )
