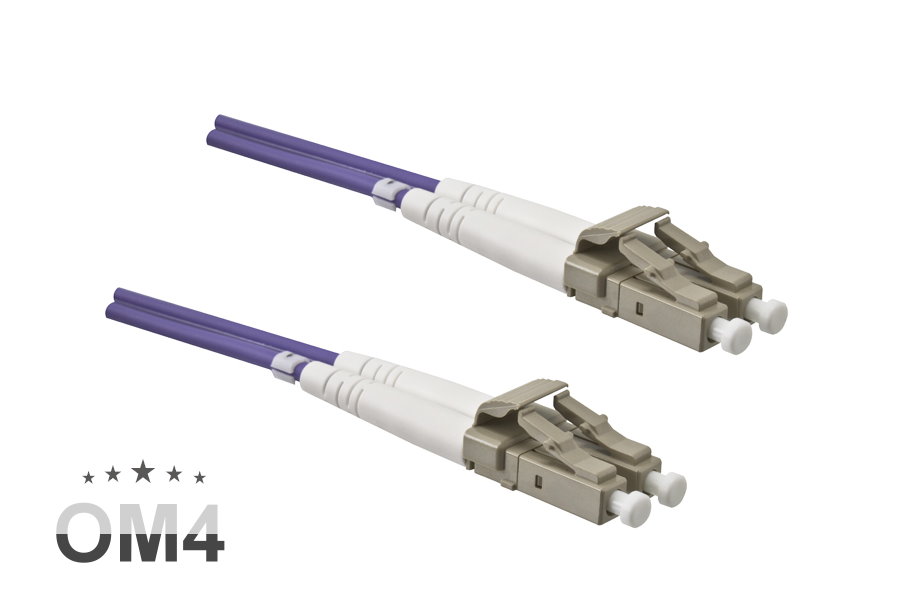

OM4 Fibre Optic fiber optic cable - LC / LC
Performance characteristics:
- Fiber: 50/125µ
- Connector: LC to LC
- Multimode - OM4
- Duplex (two wires)
- OD: 1.8mm (outer diameter)
- Operating temperature: -20° to +70
- Color: ericaviolet (RAL 4003)
- length: 100m
Features:
- RoHS compliant
- Halogen free according to IEC 60754-2
- Flame retardant according to IEC 60332-1
- Low smoke according to IEC 61034
- Packaging: Bulk
- Width: 200mm / Height: 300mm
Max. Range:
- 1 Gigabit/s - up to 1100m
- 10 Gigabit/s - up to 550m
- 40 Gigabit/s - up to 150m
- 100 Gigabit/s - up to 150m
With OM4 optical fibers, more data can be transmitted and the range of the transmission channel increases.
( Optical fiber / fiber optic / fiber optic cable / LCLC )

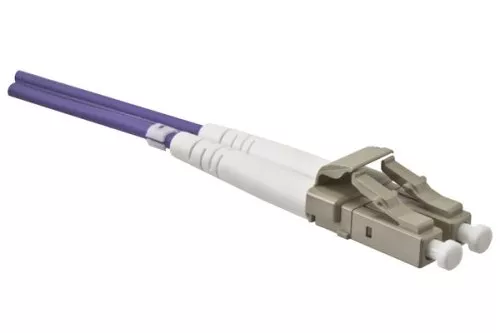

.webp "FO cable OM4, 50µ, LC / LC connector multimode, ericaviolet, duplex, LSZH, 100m")
