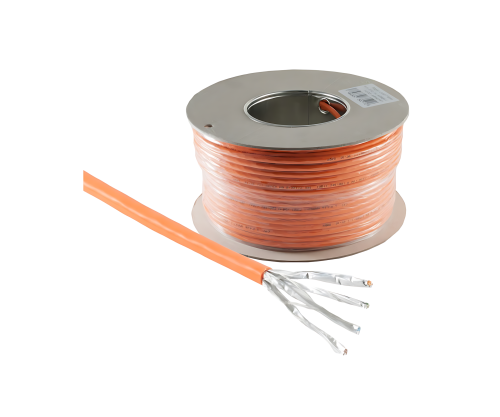

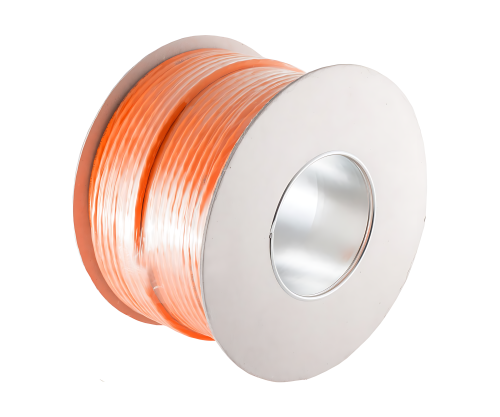

Cat. 7 installation cable, S/FTP, BasicPro, orange, 100m
Cat. 7 network cable, suitable for structured building cabling indoors.
The perfect standard cable with GHMT certification according to:
ISO/IEC 11801-1 Ed.1.0 (2017-11)
IEC 61156-5 Ed.3.0 (2020-04)
- Specification: Cat. 7
- Transmission frequency up to: 1000MHz
- Bandwidth up to: 10Gbit/s
- Number of shields: 2-fold
- Shielding 1: ALU foil laminated PIMF (100% tight)
- Shielding 2: ALU braiding
- Shielding class: S/FTP
- Cable construction: AWG 23/1
- Core material: Copper
- Core type: Solid conductor / Rigid (solid)
- Number of cores: 2 x 8 (4 x 2 twisted pair)
- Cable type: Round cable
- Cable sheath: LSZH (halogen-free)
- Cable diameter (approx.): 7.4 mm
- BauPVO Euroclass: Cca
- Cable colour: orange
- Winding: Paper coil
- Length: 100.0m
