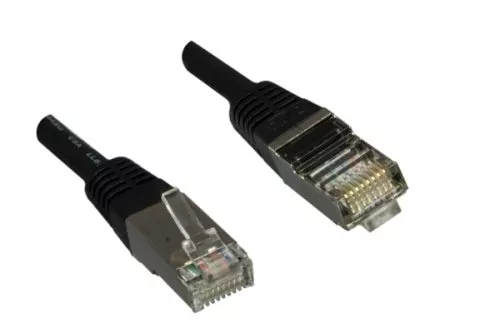

Cat.5e crossover patch cable for Gigabit Ethernet, 3m
The usual use of a crossover cable is to connect two computers via their network cards without a hub or switch. The two computers connected in this way then form a network.
Properties:
- Plug: 2x RJ45 - gold-plated contacts
- Bend protection: moulded with strain relief
- Category: 5e
- Cross-section: AWG 26 (4P) flexible
- Shielding: FTP (foil shielded, twisted in pairs)
- Colour: black
- Length: 3m
- Approval: UL, RoHS compliant
- Assignment: Crossover 1-3/2-6, 3-1/6-2, 4-7/5-8, 7-4/8-5
Packaging: DINIC polybag with Euro hole
- Width: 120mm
- Height: 200m
Note:
In a crossover cable, the transmit data is swapped with the receive data at one end so that data can be exchanged in the event of a direct connection. If the send and receive data were not swapped, no connection could be established. With Gigabit Ethernet, crossover cables can usually be dispensed with, as Auto-MDI-X (automatic detection) is defined in the standard and is supported by most devices.
Manufacturer:
MAG GmbH
Vechelder Str. 22
38268 Lengede
Email: dinic@mag.de
Safety Information:
Use only under direct adult supervision
